1240S Single-Row Housing
Products List > Wire to Board Connector > 1.25mm > 1240S Single-Row Housing

1240S Single-Row Housing

Specifications
.Current rating: 1A AC,DC Max. (AWG 26)
.Voltage Range: 150V AC,DC
.Withstand Voltage: 500V AC/Minute
.Contact Resistance: 30 mΩ Max. before Environment test
.Insulation Resistance: 500 MΩ Min.
.Temperature Range: -25℃ to 85℃
Reference
.Mates with 1242P Header
.Use with 1243T Terminal

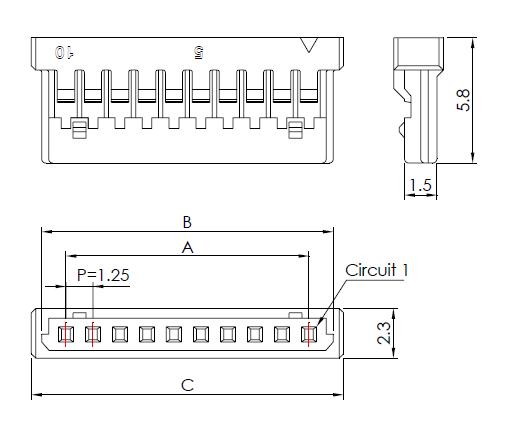

Customer Drawing
